50kW DC-DC converter

Product Numbers: DC-50

Product description: 50kW DC-DC converter|50kW DC-DC 컨버터

INTRODUCTION

Send e-mail to sales@lowcarbon-idea.com for more details

All products can be customized design and OEM manuafacturing service accordingly.

50kW DC-DC converter datasheet
1. Input voltage: 600VDC ±5%
2. Output voltage: 0~500VDC
3. Output current: 0~125A@(0~400VDC
                           0~2A@500VDC
4. Max output power: 50k Watt
5. Regulation accuracy: ≤1%
6. Ripple wave: humidity0.5%
7. Efficiency: ≥90%
8. Over-voltage protection@ 510 V
9. Over-current protection@ 130A
10. Over-heated protection@ 85°C
11. Humidity: ≤90%
12. Duty: S1
13. protection:short circuit protection, anti-misconnection,over-current
protection,over-voltage.over-heated protection.
14.Control method: 0~5V
15.Cooling type: Fan cooling

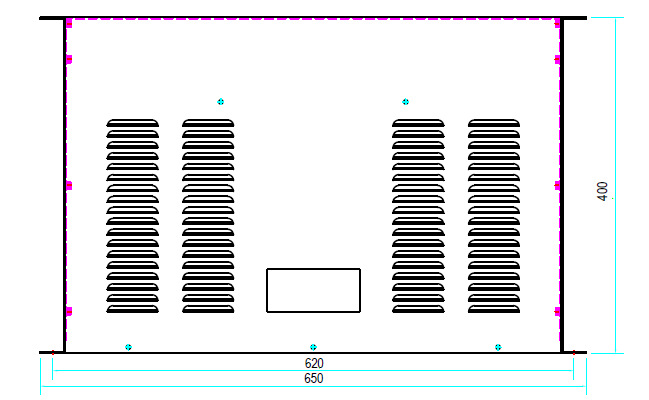

outline drawing download
